Duscaff manufactures components
Scafflok Plus
Cuplock, and more.
Scafflok Plus

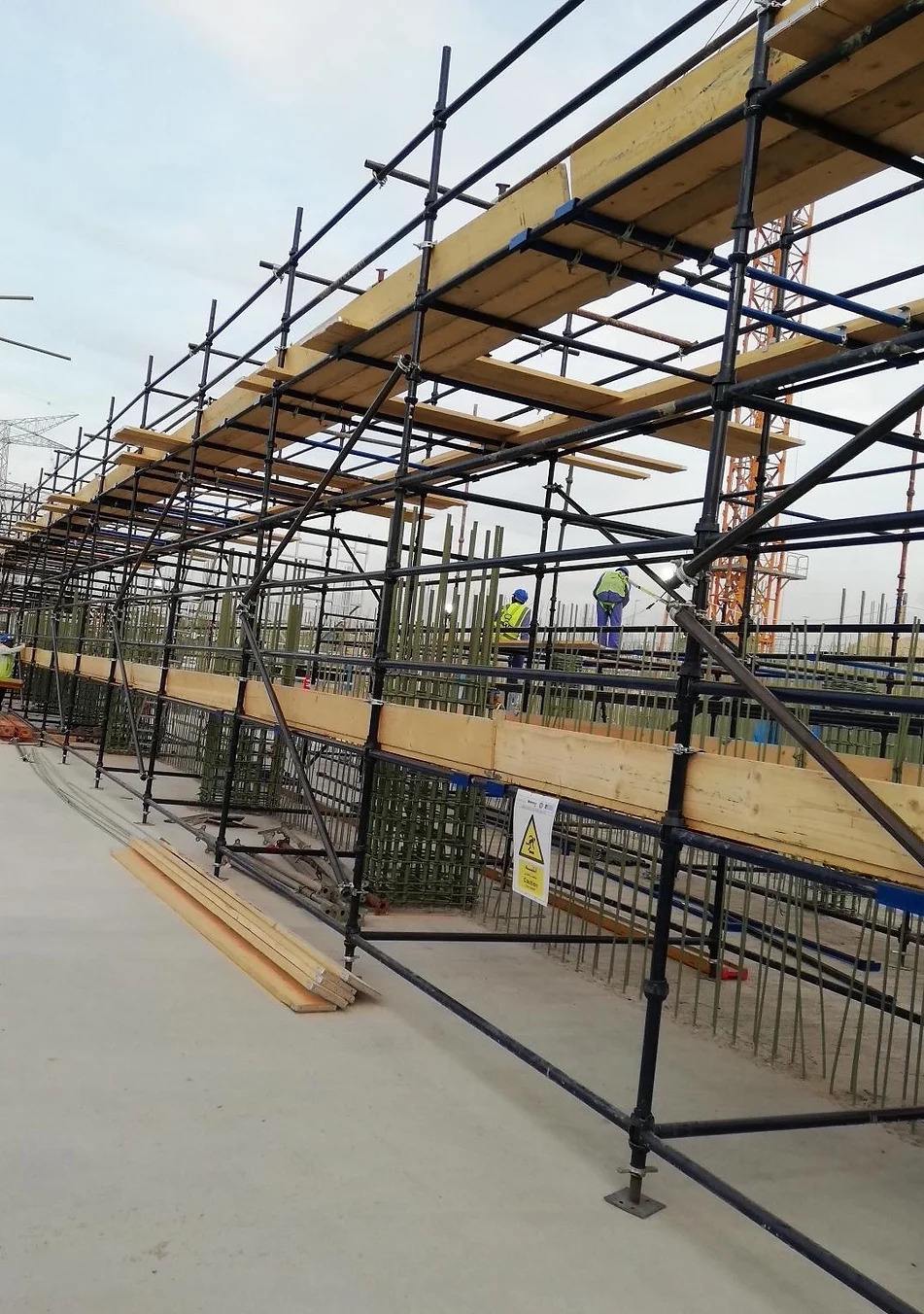

The Scafflok Plus system is either a painted, or a fully galvanized, multi-purpose steel system scaffold for general access, shoring and supporting vertical loads.
Scafflok is distinguished by its unique node point, which allows up to four components to be connected in one fastening action.
Scafflok is ideal for a wide range of applications including continuous façade, circular scaffold, birdcage access and staircase access. It is often used for renovation scaffolding, façade scaffolding, masonry scaffolding, support or staircase towers, as well as being used in more specialised applications, such as shipbuilding.
Duscaff range of Scafflok components include Standards, Ledgers, Transoms, Tubes, Fittings, Wooden and Steel Planks, Brackets, Base Products, Stairs, Ladders, Caster Wheels, and other related accessories.
CE and UKAS Certified Scaffolding Products.
Build quality of Duscaff at the price of commercial products.
- Quick Erect/ Dismantle Time
- Standards Allow Up To 4 Connections
- Connection By 1 Fastening Action
- Heavy-duty Forged Components
- High Tensile Steel
Scafflok Locking Procedure
Locate the blade end of Ledgers and Transoms in lower cup.
Slide the upper cup down the Standard and rotate.
Tighten with a hammer blow.
A positive and rigid connection of up to four units is achieved in one single action.
SCAFFLOK PLUS
Verticals
Scafflok Plus Standards
1. Forged cup joints at 500 mm spacing.
2. Spigot connector for vertical stacking.
Horizontals
Scafflok Plus Ledgers
1. High-strength structural tubing.
2. Forged ledger blades for accurate fit.
Intermediate Transoms
Scafflok Plus Transoms
1. Drop-in design for quick installation.
2. Precision-cut ends for secure placement.
U Head Jacks
Scafflok Plus U Head Jacks
1. Screw-threaded stem for height adjustment.
2. Galvanized or painted finish for corrosion resistance.
Universal Jacks
Scafflok Plus Universal Jacks
1. Solid or hollow threaded stem.
2. Heavy-duty base plate for load transfer.
Steel Planks
Scafflok Plus Steel Planks
1. Galvanized and Painted.
2. With and without hooks.
3. Compatible with other Cuplock manufacturer's components.
Scafflok Plus Base Plates
Scafflok Plus Base Plates
1. Galvanized and Painted.
2. 150 mm x 150 mm (or other sizes)
Board Brackets
Scafflok Plus Hop Up Brackets
1. Single and double brackets available.
2. Secure cup connection to standards.
Staircase Units
Scafflok Plus Staircase Units
1. Quick-fit assembly within Scafflok Plus bays.
2. Anti-slip stair treads.
Adjustable Base Jacks
Scafflok Plus Base Jacks
1. Hot Dipped Galvanized.
2. Compatible with other Ringlock manufacturer's components.
